Products | Procureit

C400M IR Fever Warning System

Paul Wyld — Sat, 09 May 2020 06:01:46 +0000

Provide fast temperature screening for a group of people in real-time
Support automatic warning while detecting fever people
Support automatic temp calibration and warning pre-value setting
Rotatable design to achieve all around monitoring
Optional tripod, 24 - inch monitor, support projection function, wireless control
Handheld-type, easy to deploy and take with you

C400M
Item	Specification
IR detector
IR resolution	384×288
Detector type	VOx/25μm/7.5~14μm
Frame rate	25Hz/9Hz
NETD	40mk
Focal length	25mm/F1.0
Field of view(FOV)	21.7°×16.4°
Spatial resolution(IFOV)	0.99mrad
Min focus distance	0.4m
Focus	Electric, Automatic
Image Presentation
LCD Display	5",1280×720 High Light Touch Screen
Viewfinder	1280×960 LCOS Screen
Brightness contrast	Automatic, Manual, Fixed
Image mode	IR image, Visual image, PIP, MIF
Color palette	8
Digital zoom	1.1~4x
Temperauture Measurement
Measurement Range	20℃~60℃
Accurancy	≤±0.4℃ (target temperature 32℃~38℃)
Spot/Line/Area	5 spots, 5 lines, 5 Areas
Analysis Info Storage	Saved with image (spot,line,areas)
Automatic Tracking	Either max. or min.
Isotherm	Upward, downward
Warning	Support image and voice warning
Storage
Image Format	Full Radiometric (JPG)
Image Internal Storage	Built-in 16G, SD card 16G (maximum support 32G)
Report Creation	PDF format, support print by connecting Wifi
Video Format	H.264(with temperature information)
Video Storage	Manual
Other
Hardware		Visual camera of 5 million pixels, Illuminator, laser, Wi-Fi, Microphone(Volume adjustable), Speaker(Volume adjustable), Digital compass, GPS, Light sensor
Interface		Micro USB 2.0,SD card,Gigabit Ethernet,Tripod,Mini HDMI
Battery		Rechargeable Li-ion Battery(Certified to UN38.3), battery time>4 hours, support Sleeping mode
Working Temperature		15°C~35°C
Storage Temperature		﹣40°C~70°C
Encapsulation		IP54
Weight		1350g
Size		206mm×145mm×135mm
Standard Accessories		Li-ion battery,Power supply adapter, Adapter plug (5 pcs), Shoulder strap,USB cable, HDMI cable, Network cable, Quick Start Guide, User Manual, Data Download Card, SD card(16G), Hard transport case
Optional Accessories		Tripod, wireless mouse & keyboard & Micro USB OTG cable, 24 inch monitor (HDMI interface) & changeover plug., Li-ion battery, Pouch, Battery charger, Bluetooth earphone, Extended lens, Lens bag

The post Products first appeared on Procureit.

T120H Fever Screening Thermal Camera

Paul Wyld — Sat, 09 May 2020 05:56:04 +0000

T120H Features

Adopt the high sensitive WLP IR detector with independent intellectual property rights

Fast temperature detection, automatic fever identification and alarm

1-meter safe detection distance, low risk of infection, no disturb to detected person

Support to save up to 100,000 images, can check temperature data

TYPE-C interface, 2.5H fast charge, battery time up to 8H.

Compact and portable, suitable for mobile detection, also can be fixed by optional tripod

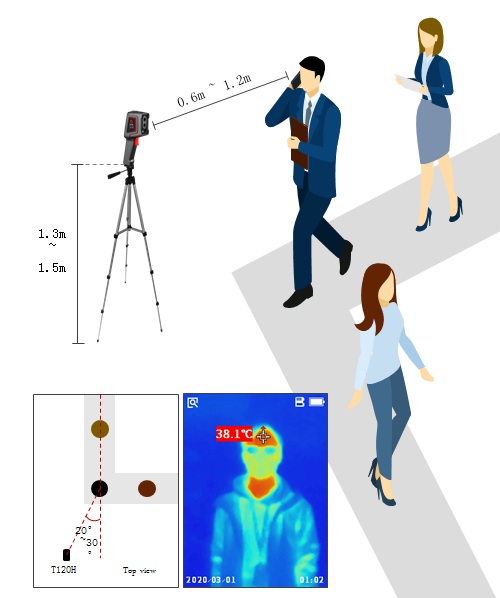

T120H Suggested Scenario

Single Mode

In the real-time IR thermal image, ensure the “detected human face” is in the centre of the frame.

Press the trigger to freeze the image and display the temperature.

Press the trigger again to save the image and return to the real-time IR thermal image.

Fast Mode

In the real-time IR thermal image, highest temp in the image will be auto-tracked.

And once elevated temp detected, the image will be captured and saved automatically.

Download Brochure here T120 H Brochure

The post Products first appeared on Procureit.

MobIR Air CB360 Fever Scanner for Smartphone

Paul Wyld — Sat, 09 May 2020 05:38:25 +0000

Safe: temperature screening from 1.2 meters away, ensure social distance and avoid cross-infection

Efficient: scan and show the temperature instantly

Simple: plug and play, easy to use

Automatic: Sound an alarm and capture an image while identifying the elevated temperature

Imaging enhancement: GUIDE’s Unique MIF (Multi-spectral Imaging Fusion) technology, enhance the thermal image by the camera of smartphone

Image data can be reported and shared by social media

Category	Item	Specifications
IR Detector	IR Resolution	120×90 @17μm WLP
IR Detector	Spectral Range	8～14μm
Lens	Focal Length	2.3mm F1.1
	Field of View (FOV)	50°±1°
	Focus	Focus-free
Imaging	Frame Rate	25Hz
Functions	Temperature Measurement Accuracy	Temperature measuring from 0.5 ~ 1.2 meters;, accuracy≤ ± 0.5 ℃, target temperature range 28 ℃ ～ 40 ℃
	Multi-spectral Imaging Fusion	Adopt our unique MIF technology, add visible details to the thermal image by the camera of smartphone
	Image Display/Capture	Saved as JPEG images
Interface	Communication Power Supply Interface	USB Type-C (Android); Lightning (IOS)
Powwer Supply	Input Voltage	5V，Powered by smartphone
Powwer Supply	Typical Power Consumption	≤150mW
Environmental Adaptability	Operating Temperature	0℃-40℃
	Storage Temperature	-10℃-55℃
	Drop Test	1-meter drop test
Others	Weight	Net weight -20g，Gross weight- 80g
	Dimensions	51mm×18mm×15.6mm (L x W x H) (excl.USB interface)
	Package Dimensions	102mm×72mm×38mm (L x W x H)
	Certifications	RoHS、CE、FCC
	Standard Accessories	Fever Scanner, Quick Start Guide, Warranty Card

The post Products first appeared on Procureit.

Guide IR236 Infrared Fever Screening System

Paul Wyld — Sat, 09 May 2020 05:23:41 +0000

IR236
Category	Item	Specification
IR detector	IR resolution	400×300
	Pixel size	17μm
	NETD	≤40mK
	Focal Length	9.7mm
	FOV	38°*28°
	Frame Rate	25Hz
Visible Camera	Resolution	2 million pixels
Visible Camera	Frame Rate	25Hz
Temperature Measurement	Range	-10℃~50℃
	Accuracy	≤ ± 0.3 ℃ (ambient temperature 16 ~ 32 ℃)
	Calibration	Built-in shutter and external black body, automatic calibration after selecting mode
Software functions	Parameter settings	Warning switch and warning threshold value, number of warning targets, warning photos automatic clearing, shielding fixed high temperature objects
	Face tracking	Intelligent face tracking, Supported from V1.0.9.0
	Real-time preview	Real-time preview of visible and thermal image
	Real-time spot temperature detection	Real-time temperature monitoring at any point in the field of view
	Automatic tracking	Support automatic tracking for elevated temperatures
	Automatic warning	Automatic tracking, warning and photo capturing for storage when people with fevers are identified; Warning while the Black Body is blocked.
	Historical records	Support query, classification and deletion of historical warning screenshots
	Video recording	Support. The software needs to be upgraded to V1.1.0.9, and equipped with NVR (NVR standard 4T hard disk), support GB28181 protocol to access third-party platforms
	Network communication protocol	HTTP、RTSP
Environmental adaptability	Work Temperature	-10 ~ 50 ℃ (ambient temperature 16 ~ 32 ℃)
	Storage Temperature	-20 ℃ ~ 60 ℃
	Work Humidity	<90% (non-condensing)
	Shock	30g 11ms, IEC60068-2-27
	Vibration	10HZ ~ 150Hz ~ 10Hz 0.15mm, IEC60068-2-6
Black body	Blackbody target surface uniformity	≤0.1 ℃
Black body	Temperature stability accuracy	≤ ± 0.2 ℃ (single point)
Camera head interface	Network interface	Two-way, visible light 100M, infrared 1000M
Camera head power	Input voltage	DC 12V
Camera head power	input power	≤12W
Packaging specifications	Camera head size	173mm×184mm×212mm
	Total height (incl. stand)	2200mm
	Camera head package	510mm× 440mm × 270mm (subject to actual delivery)
	Total weight	≤45kg (subject to actual delivery)

Download Brochure here IR236

The post Products first appeared on Procureit.

Test

Paul Wyld — Thu, 20 Feb 2020 06:13:09 +0000

> PRO – 4 poles brushless

Paul Wyld — Thu, 13 Feb 2020 14:11:52 +0000

Three-phase brushless synchronous alternators

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

Compact and mechanically resistant
Excellent wave form
Minimum maintenance
High efficiency

Type: Three-phase alternators
Poles: 4
Phases: Three-phase
Regulation: AVR
Application: INDUSTRIAL, COGENERATION

The post Products first appeared on Procureit.

> SLT18 – 4 poles brushless

Paul Wyld — Thu, 13 Feb 2020 14:09:55 +0000

Three-phase brushless synchronous alternators

The alternators of SLT18 series are three-phase 4 poles brushless with electronic regulation (AVR) with single-phase sensing.

CHARACTERISTICS

Compact and mechanically resistant
Excellent wave form
Minimum maintenance
High efficiency
Type: Three-phase alternators
Poles: 4
Phases: Three-phase
Regulation: AVR
Application: INDUSTRIAL, TELECOMMUNICATION

The post Products first appeared on Procureit.

> E1X/4 – 4 poles brushless

Paul Wyld — Thu, 13 Feb 2020 14:04:50 +0000

Three-phase brushless synchronous alternators

E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR). On demand it is available the KE version with mixed regulation (compound+AVR).

CHARACTERISTICS

Compact and mechnically resistant
Minimum maintenance
High efficiency

Type: Three-phase alternators
Poles: 4
Phases: Three-phase
Regulation: AVR
Application: PORTABLE, TELECOMMUNICATION

The post Products first appeared on Procureit.

> E1X/2 – 2 poles brushless

Paul Wyld — Thu, 13 Feb 2020 14:01:12 +0000

Three-phase brushless synchronous alternators

E1X/2 series are three-phase brushless 2 poles alternators with exciter and electronic regulation (AVR). On demand it is available the KE version with mixed regulation (compound+AVR).

CHARACTERISTICS

Compact and mechanically resistant
Minimum maintenance
High efficiency

Type: Three-phase alternators
Poles: 2
Phases: Three-phase
Regulation: AVR
Application: PORTABLE, TELECOMMUNICATION

The post Products first appeared on Procureit.

> E1S KE – 2 poles with brushes

Paul Wyld — Thu, 13 Feb 2020 13:58:03 +0000

Three-phase synchronous alternators with brushes and mixed regulation

E1S-KE series are three-phase 2 poles alternators with brushes and mixed regulation: compound and electronic (AVR).

CHARACTERISTICS

Possibility to feed any type of load
Compact and easy to assemble
High starting capacity
High efficiency

Type: Three-phase alternators
Poles: 2
Phases: Three-phase
Regulation: COMPOUND AND AVR
Application: PORTABLE

The post Products first appeared on Procureit.
